GY-31 TCS3200 Color Sensor Module

RM24.90

This module is used with Arduino, ESP8266 or other system to sense colored objects in front of it.



2 in stock

SKU: SNR-GY31 Category: Tags: , ,

Description

This module is based on the TCS3200 chip, an upgraded version of the TCS230, which is a programmable color light to frequency converter, making it ideal for adding color sensing capabilities to your new project

Please refer to the tutorial below on how to use this module with Arduino (with code),



Features

  • Operating voltage : 3 – 5V
  • Operating current : 25mA
  • Output type : Frequency
  • Output frequency voltage : 0 – 5V
  • High-Resolution Conversion of Light
  • Nonlinearity Error Typically 0.2% at 50 kHz
  • Stable 200 ppm/°C Temperature Coefficient
  • Use bright white LED lights
  • Static detection of the measured object color
  • Dimension : 33.2 x 33.2  x 25 mm



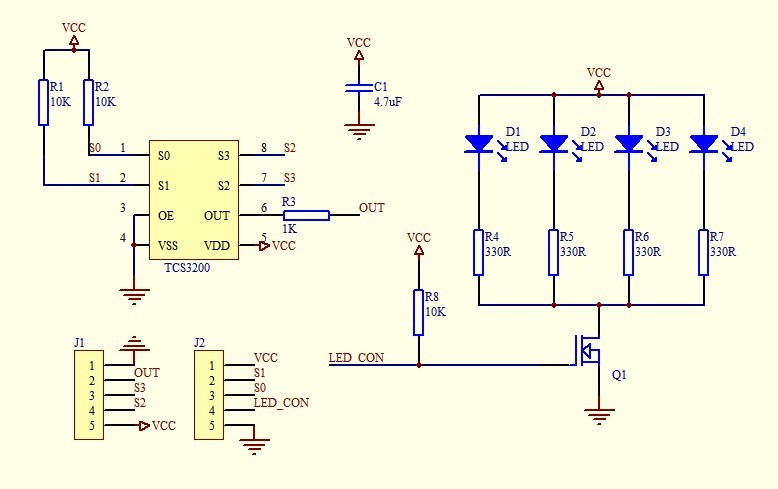

Wiring

Label Meaning Connection
GND Ground Connect to GND of system
LED LED Enable Connect to any digital pin
S0 Output frequency scaling selection inputs. Connect to any digital pin
S1 Output frequency scaling selection inputs. Connect to any digital pin
VCC Power source Connect to 3 – 5V of system
GND Ground Connect to GND of system
OUT Output frequency Connect to any digital pin
S2 Photodiode type selection inputs. Connect to any digital pin
S3 Photodiode type selection inputs. Connect to any digital pin
VCC Power source Connect to 3 – 5V of system



Files & Documentation

Additional information

Weight 8 g
Dimensions 33 × 33 × 25 mm
